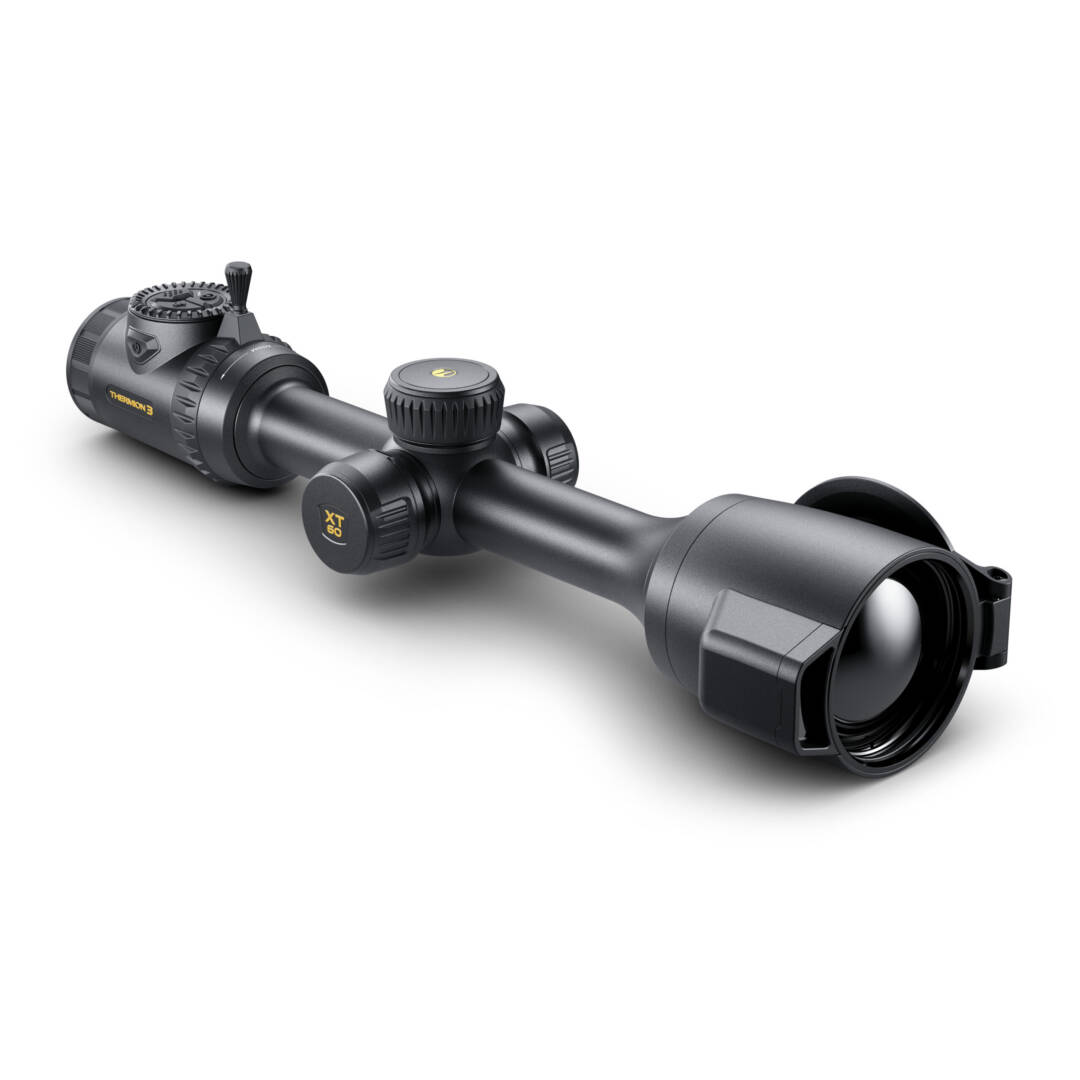

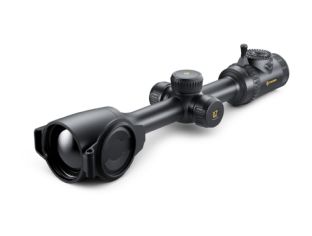

Pulsar Thermion Thermal Sight 3 LRF XT60 #76590
Thermal Sight Pulsar Thermion 3 LRF XT60 #76590 is equipped with an impressive HD sensor with a resolution of 1280x1024 pixels (12 µm pitch) and thermosensitivity NETD sub 18 mK.
This model provides an unmatched level of detail. With a base magnification of 2x (do 24x) and an extremely wide field of view of 14.6° (25.7 m of 100 m), The XT60 is perfect for long distances as well, as well as for a broad overview of the field.
Its battery life is impressive 14 o'clock.
The model achieves an impressive warm-blooded target detection range of up to 3100 meters.
Key improvements in Thermion 3
1. Laser range finder with range 1200 meters and ballistic calculator
The built-in rangefinder (LRF) already measures up to 1200 meters (at 800 meters in the previous generation) with a shorter reporting time. Combined with the built-in ballistics calculator and the Stream Vision Ballistics app, the scope automatically calculates the exact point of aim based on the ballistics of the particular round, angle and atmospheric conditions.
2. New ultra-detailed AMOLED display (2560h2560)
The display offers crystal clear image. The large working area of the screen ensures a safe eye distance of 65 mm (eye relief), which prevents eye fatigue during prolonged observation and ensures safety when shooting with heavy magnum calibers.
3. Automatic video recording on recoil (Recoil-activated video)
The sight automatically records the moment of the shot when recoil is detected, saving the precious shots of the hit. Built-in memory is increased to full 128 GB, allowing storage of hours of footage and thousands of high-resolution photos.
4. Endurance and mobile connectivity
Hardened aluminum alloy body withstands recoil up to 6000 Jaula (including calibers such as 9.3×62, .375 H&H and smoothbore 12 gauge). Protection against water and dust penetration is according to the IP67 standard, and the operating temperature range is from -25°C to +50°C. Through the built-in dual-band Wi-Fi (2.4/5 GHz) и Bluetooth, the scope connects instantly to the free Stream Vision app 2 for Android and iOS.
Characteristics:
Thermal imaging sensor and optical system
- Microbolometer resolution: 1280 x 1024 pixels (HD)
- Pixel size: 12 μm
- Thermal sensitivity (NETD): < 18 mK (record detail)
- Refresh rate (Frame Rate): 50 Hz
- German lens: 60 mm/ F1.0
- Optical zoom: 2x – 24x
- Field of view of 100 m (horizontally): 25,7 m (14,6″ broad overview)
- Detection range of a warm-blooded target: 3100 meters
- CPC of 100 m (H/V): 20 mm (Stock: 2000 mm)
Display, graphical interface and multimedia
- Display type and resolution: AMOLED 2560 x 2560 pixels
- Eye distance (Eye Relief): 65 mm (safe for heavy calipers)
- Dioptric adjustment / Color palettes: -5 / +5 dptr. | 9 palettes
- Built-in memory / Record on rollback: 128 GB / Yes (Recoil Video)
Laser range, ballistics and connectivity
- Built-in laser rangefinder (LRF): Yes (Class 1 eye safety)
- Rangefinder measurement range: To 1200 meters (faster reporting)
- Integrated ballistic calculator: Yes (Stream Vision Ballistics)
- Wireless connection (Wi-Fi / Bluetooth): 2.6 GHz / 5 GHz Wi-Fi + Bluetooth
- Mobile application: Stream Vision 2 (IOS / Android)
Power supply, housing and mechanical resistance
- Battery runtime: To 14 o'clock (replaceable APS5)
- External power supply (port): 5V / 9V USB Type-C PD
- Rebound endurance (a weapon): To 6000 Jaula (.375 H&H, 9.3×62)
- Frame / Installation diameter: Aluminum alloy / 30 mm pipe
- Protection from moisture and dust / Working temp.: IP67 / from -25C to +50C
- Overall dimensions / Weight with battery: 391 x 96 x 90 mm / 1.3 kg
Manufacturer: Pulsar
