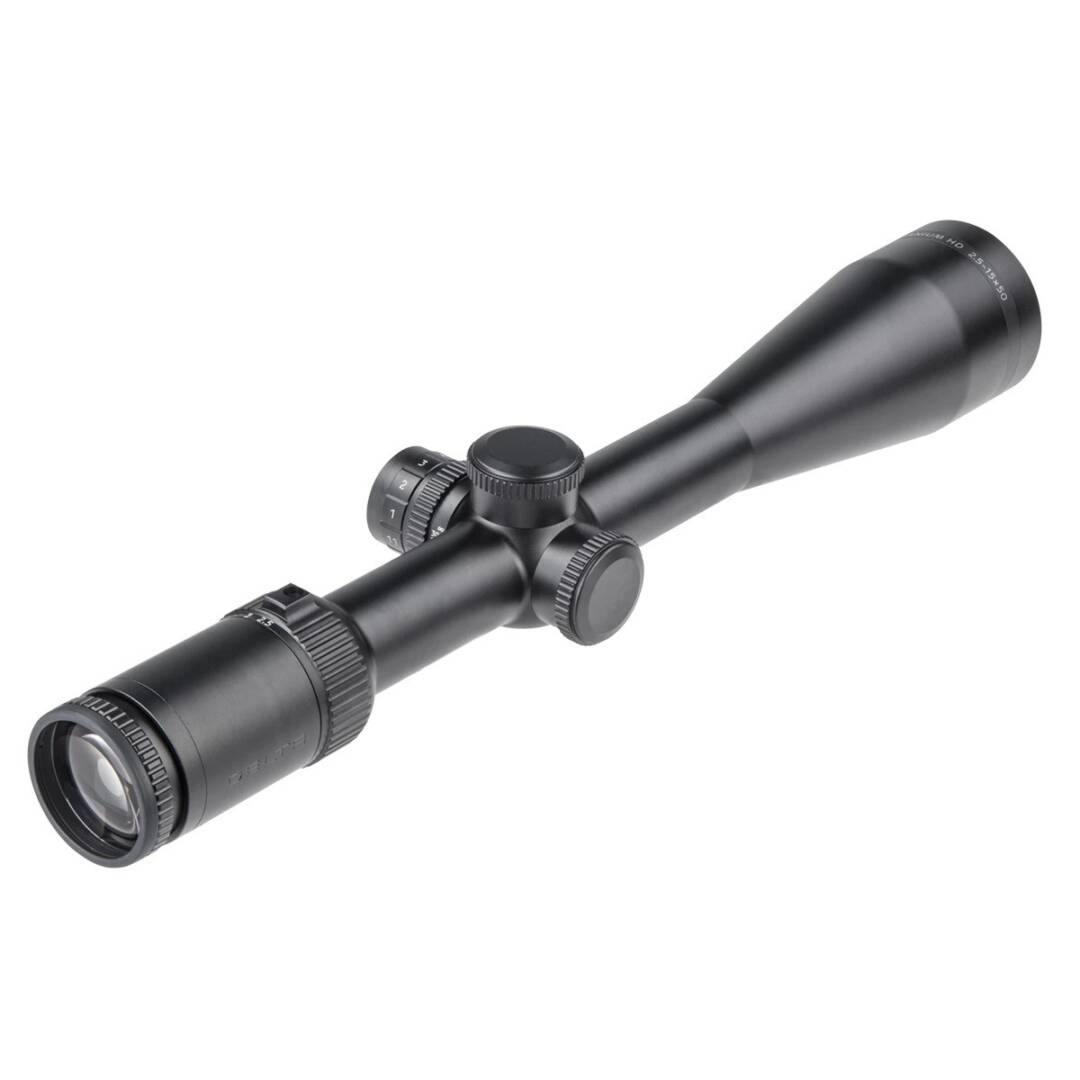

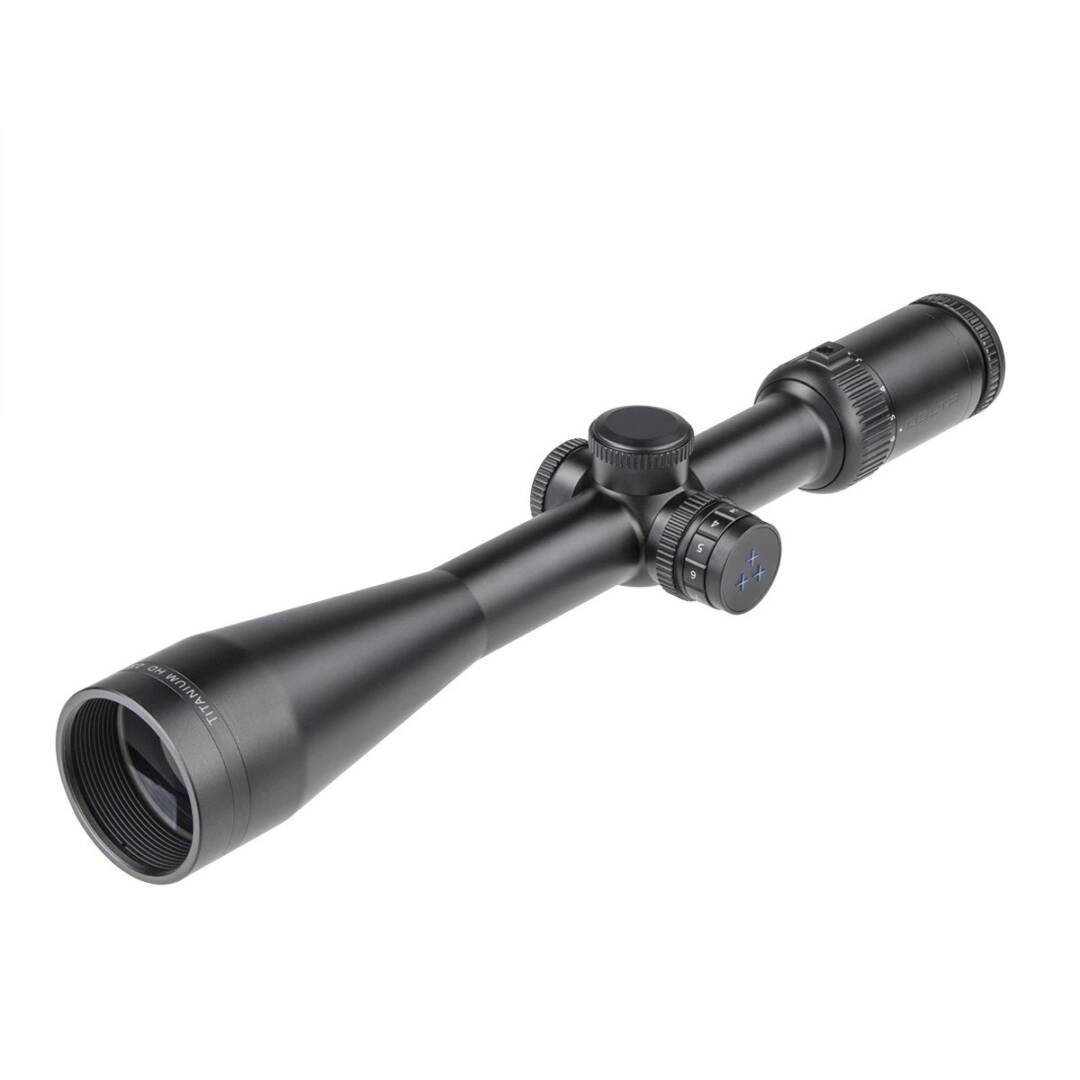

Optics Delta Titanium HD 2.5-15×56 4Аs
Optics Delta Titanium HD 2.5-15×56 4АS e великолепен дневен прицел с диапазон на увеличение от шест нива, Ideal for dusk hunting. The combination of an increase of 15x, Parallax compensation and remarkable HD-contrast HD optics allow precision long-distance shots. Моделът се предлага със скала 4АS (MOA).
Extremely high lighting capacity of light from about 92% for the entire optical system and to 98% For the individual layers – прави оптичните прицели Delta Optical Titanium да са Top of the Game!
Each hunter knows how important the mechanical resistance of such a precision optical device is, затова сме въвели здрави зрителни тубуси в два размера – 30 mm and 34 mm (dependence on the model). Те са в състояние да издържат на изстрели до 6500 J (1000 G). All this has been confirmed by tests, held at the German Institute Deva.
The multifunctionality of these targets is further emphasized by the backlight during the day and night, which allows regulation of intensity of targeting point for a specific firing environment.
Оптиките на Delta Optical от серията Titanium HD включват редица иновативни решения, that make them even more accurate and comfortable. HD оптиката и съвсем новияоптичен дизайн водят до по-ясна картина, thus providing all the necessary brightness for accurate long-range shots even at a greater magnification.
Също така значително е подобрено удобството при употреба. The backlight adjustment button has been moved to the center of the target, resulting in a quick and easy change of rear illumination settings. For optical targets with Parallax correction (SF versions) Adjustable knob is coaxial with rear -light adjustment button.
All Optical Titanium optical targets are covered with a 10-year warranty (optics, mechanics, electronics).
Water resistance, nitrogen, Allows convenient use in all conditions.
Technical characteristics:
Minimal increase: 2,5x
Maximum magnification: 15x
Lens diameter: 56 mm

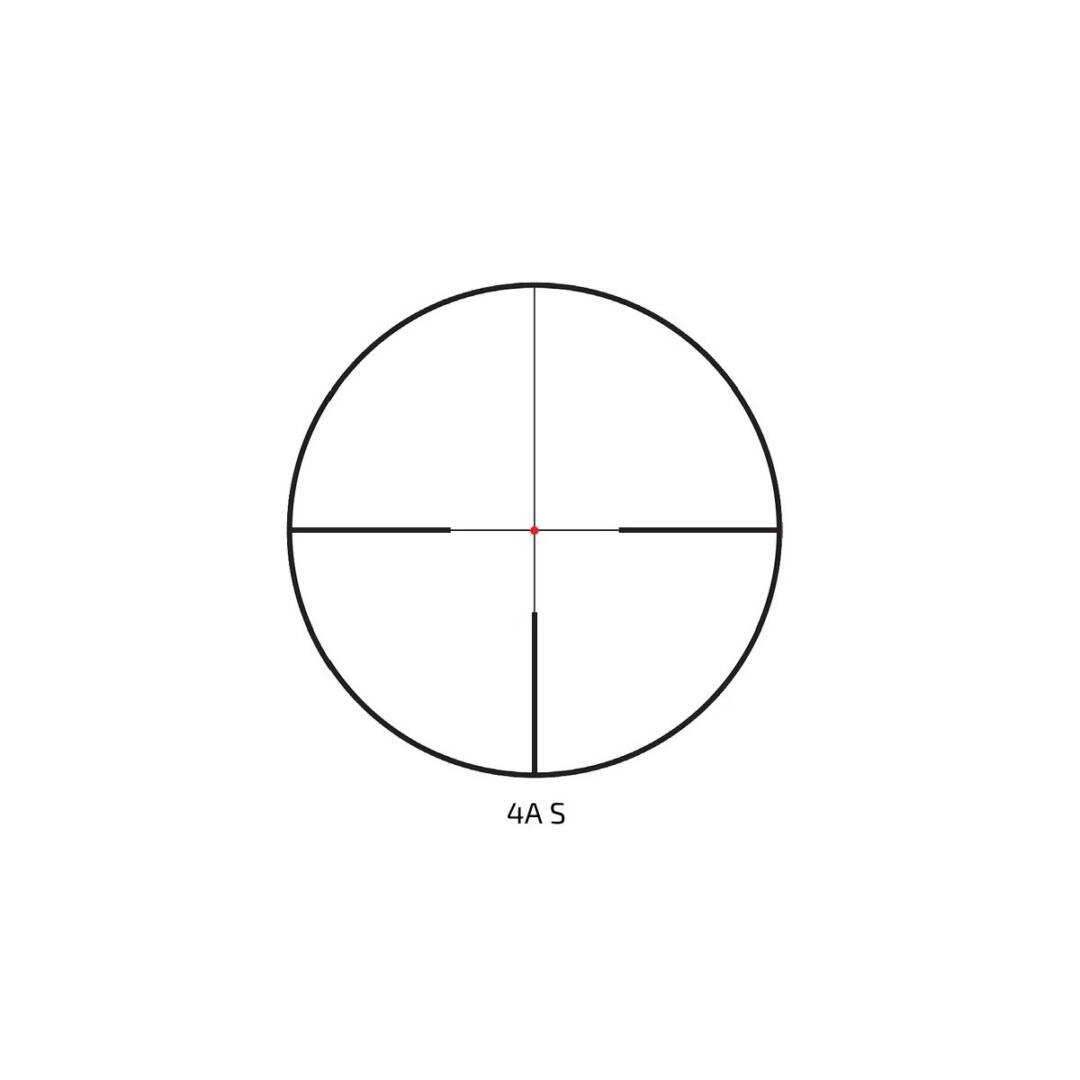

Scale name: 4A S
Network: Second focal plane (SFP)
Mesh: Central point
Distance from the eye: 99 – 98 mm
Exit pupil: 22,4 – 3,73 mm
Linear field of view of 100 m: 14,4 – 2,5 m
Corner field of visibility: 8,22 – 1,42°
Type Copter / Kula: covered
Вертикален диапазон на регулиране: 50 MOA
Хоризонтален диапазон на регулиране: 50 MOA
One -click adjustment: 0,25 MOA
Tower: 12 MOA
Parallax adjustment: 15 m – ∞
Dioptric correction: -2D/+3D
ZeroStop: Not
Length: 365 mm
Pipe diameter: 30 mm
Lens: 65 mm
Outer diameter of the eyepiece: 43,5 mm
Weight: 742 Mr
Water resistance: 0,3 kg/cm2
Filling with nitrogen: Yes
Work temperature: -20 / 71 °C
Shock resistance: 6500 J
Battery type: CR2032
Warranty period: 120 the month
Made in Japan for Delta Optical
